Thingy53 Overview

×

Features

• SoC nRF5340

  • nRF5340 Product Page
  • nRF5340 Product Specification

  • 128/64 MHz Arm Cortex-M33 application processor with 1 MB Flash & 512 KB RAM

  • 64 MHz Arm Cortex-M33 network processor with 256 KB Flash & 64 KB RAM

  • Thread (Matter), Zigbee, ANT, NFC, Bluetooth (LE - Mesh - Arrival Departure Direction)

  • USB

  • Trusted Firmware M, CryptoCell-312, key management unit (KMU)

• Sensors

  • RGB Led

  • Color sensor BH1749NUC

    • BH1749NUC Datasheet

    • Measures Red, Green, Blue and IR

    • Illuminance Detection Range 80 klx (0.0125 lux/count)

  • BME688 Digital nose : low power gas, pressure, temperature & humidity sensor with AI

    • BME688 Product page
    • BME688 Datasheet

  • Accelerometers

    • ADXL362 Low Power accelerometer

    • BMI270 Accelerometer and gyroscope

    • Disconnect switch for ADXL362 and BMI270

  • Magentometer BMM150

  • VM3011 Microphone

  • Buzzer Piezo_4kHz

• RF Front End Module nRF21540

  • nRF21540 Product Page
  • nRF21540 Product Specification

  • up to +21 dBm with TX gain control

  • 13 dB RX gain with 2.7 dB noise figure

  • 6.3 up to x10 raneg extension

• Power Management Integrated Circuit

  • nPM1100 Product Page
  • nPM1100 Product Specification

  • USB input

  • 400 mA battery charger

  • 150 mA regulated output

  • Overvoltage protection

  • charge and error status

• Interfaces and peripherals

  • 2 Buttons, one user, second is internal

  • USB for Firmware update, application Data and chargin

  • External QSPI Flash MX25R6435F 64 Mbit

  • NFC Antenna

  • 10 pin SWD interface

  • Expansion for trace debug and current measurement

Development with Zephyr

• Board name thingy53_nrf5340

• Board reference PCA20053

• build targets

  • thingy53_nrf5340_cpuapp

  • thingy53_nrf5340_cpuapp_ns

  • thingy53_nrf5340_cpunet

Zephyr Board documentation

• https://developer.nordicsemi.com/nRF_Connect_SDK/doc/latest/zephyr/boards/arm/thingy53_nrf5340/doc/index.html#
• https://docs.zephyrproject.org/latest/boards/arm/thingy53_nrf5340/doc/index.html

nRF Connect SDK

Working with nRF53 Series

• https://developer.nordicsemi.com/nRF_Connect_SDK/doc/latest/nrf/nrf53.html

Applications

• Machine Learning
• Matter - Weather Station
• Zigbee - Weather Station

nrf sdk samples

• Bluetooth - Peripheral LBS
• Bluetooth - Mesh Light
• Bluetooth - Mesh Light Fixture
• Bluetooth - Lesh Light Switch
• Bluetooth - Mesh Sensor
• Bluetooth - Peripheral UART
• nrf 5340
• Thread
• Edge Impulse

nrf zephyr samples

• Accelerometer Polling
• Magnetometer polling

Examples build

cd nrf/v2.3.0/zephyr/samples/sensor/bme680
>west build -b thingy53_nrf5340_cpuapp

• nRF Desktop Programmer

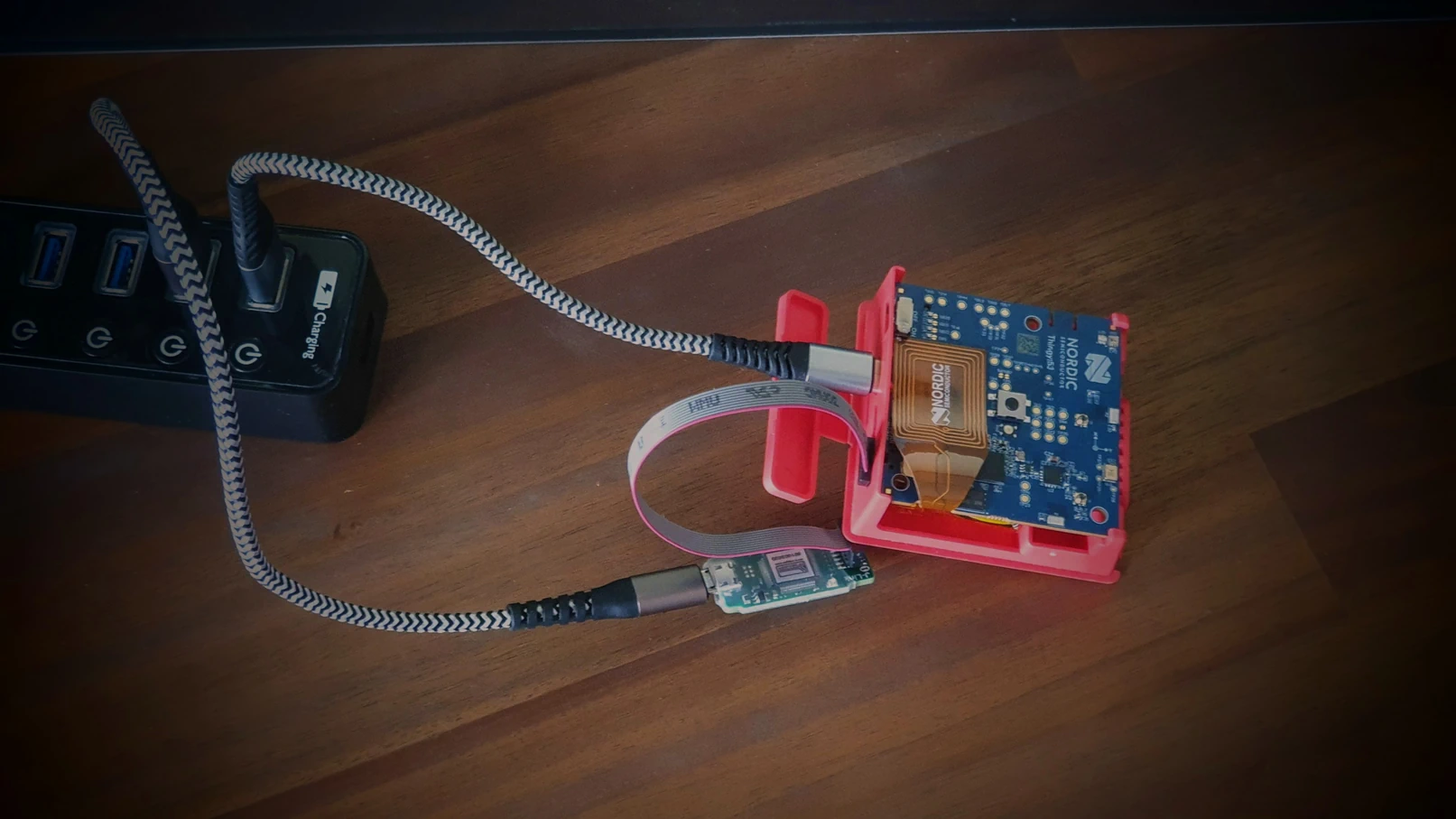

  • keep internal sw2 while power on with sw1 see Updating through USB

  • on success a new port is detected

  • use dfu_application.zip see MCUboot output build files
• restore example application firmwa with the same procedure with binaries available on the Nordic Thingy53 downloads

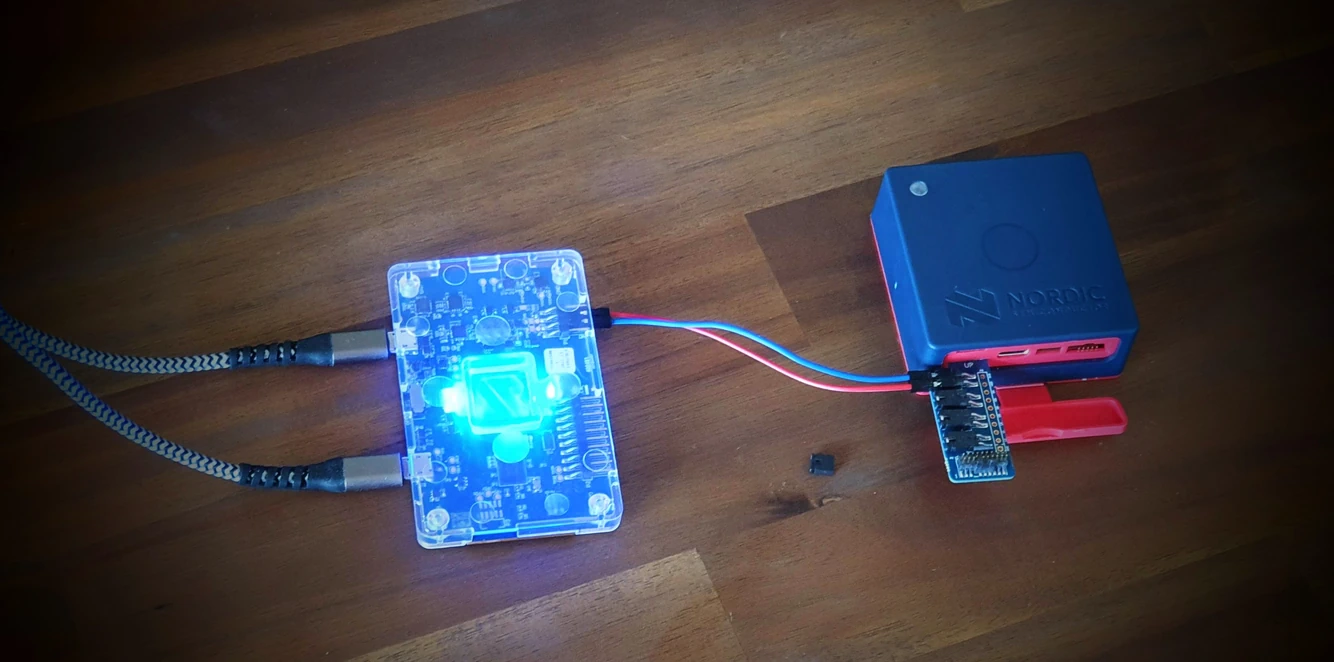

Current measure

×
