C3 Dev Kit M1
×
PIO Board

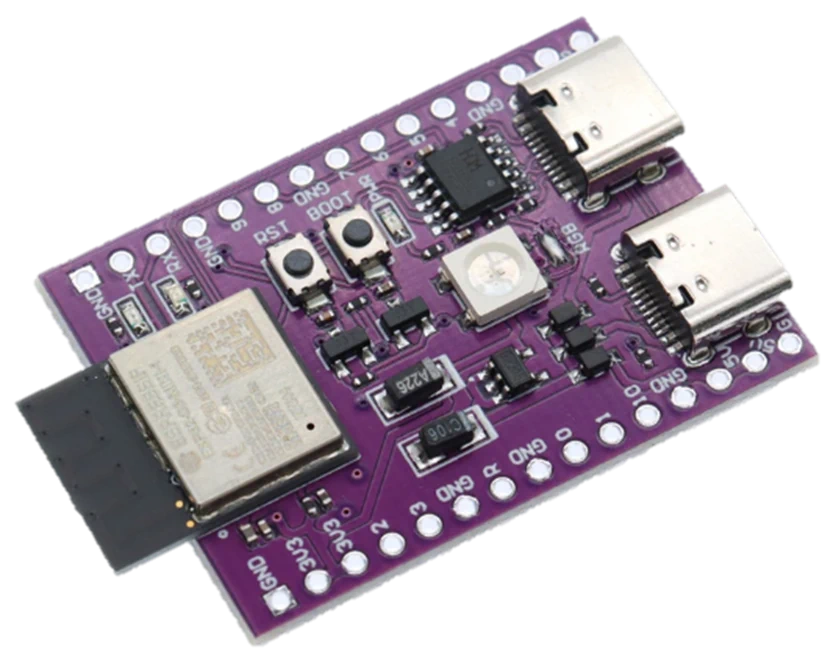

board = esp32-c3-devkitm-1 ESP32 C3 Mini
Schematics
Pinout
pinout
| J1 Header 9 | 0 | |
| J1 Header 10 | 1 | |
| J1 Header 4 | 2 | |
| J1 Header 5 | 3 | |
| J3 Header 11 | 4 | |
| J3 Header 10 | 5 | |
| J3 Header 9 | 6 | |
| J3 Header 8 | 7 | |
| J3 Header 6 | RGB LED | 8 |
| J3 Header 5 | BOOT | 9 |
| J1 Header 11 | 10 | |
| J1 Header 13 | USB2 | 18 |
| J1 Header 14 | USB2 | 19 |
| J3 Header 2 | USB1 CH340 | TXD0 |
| J3 Header 3 | USB1 CH340 | RXD0 |
| RST CHIP_PU | EN |
