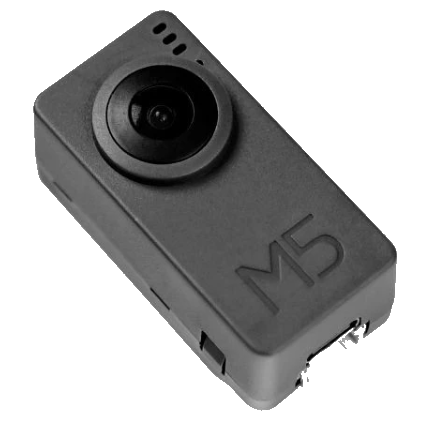

Timer Cam OV3660

3 Mega Pixels OV3660
Fisheye lens DFOV 120°
Ultra low power, sleep current 2μA
270mAh battery
PSRAM 8MB

Links

Fisheye Timer camera $20

Schematics - ESP32_SUBSYS

Schematics - PMS_UART

Platformio porting

board definition

local file : boards\m5stack-timer-cam.json
should be added to the platformio/platform-espressif32 repo
still missing from v2.1.0

pins declaration

file required pins_arduino.h
available on pins_arduino.h@1.0.5 not yet released

Applications

wakeup

Build info ...

PACKAGES:
 - framework-arduinoespressif32 0.0.0+sha.b05bdf6
 - tool-esptoolpy 1.30000.201119 (3.0.0)
 - toolchain-xtensa32 2.50200.80 (5.2.0)
Dependency Graph
|-- <Timer-CAM> 0.0.1

webcam

Build info ...

Note app_httpd is part of the Timer-CAM lib

PACKAGES:
 - framework-arduinoespressif32 0.0.0+sha.b05bdf6
 - tool-esptoolpy 1.30000.201119 (3.0.0)
 - tool-mkspiffs 2.230.0 (2.30)
 - toolchain-xtensa32 2.50200.80 (5.2.0)
Dependency Graph
|-- <Timer-CAM> 0.0.1
|-- <WiFi> 1.0

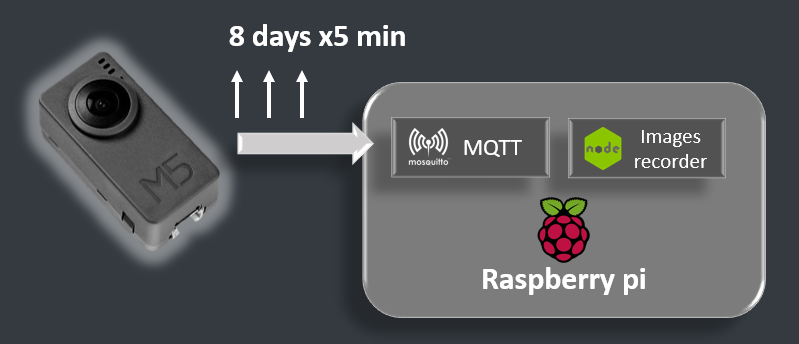

mqtt timer cam

ESP32 Program Github Repo

Node.js record service Github Repo

Json Conf ...

{
    "mqtt" : {
        "host":"10.0.0.42",
        "port":1883,
        "client_id":"esp_camera_lapse"
    },
    "camera":{
        "frame_size":"VGA",
        "buffer_count":2,
        "jpeg_quality":90,
        "base_topic":"esp/camera",
        "battery_sleep":300,
        "usb_sleep":10
    }
}

Platformio ini file ...

[env]
board = m5stack-timer-cam
framework = arduino
lib_deps =
    Timer-CAM
    WiFi
    ArduinoJson@6.16.1
    617@2.4.7   #MQTT 256dpi/arduino-mqtt
lib_ldf_mode = deep+
[env:m5stack-timer-cam]
platform = espressif32
monitor_speed = 115200

platform_packages =
    platformio/framework-arduinoespressif32 @ https://github.com/espressif/arduino-esp32.git#1.0.5-rc4

Build info ...

PACKAGES:
 - framework-arduinoespressif32 0.0.0+sha.b05bdf6
 - tool-esptoolpy 1.30000.201119 (3.0.0)
 - toolchain-xtensa32 2.50200.80 (5.2.0)
LDF: Library Dependency Finder -> http://bit.ly/configure-pio-ldf
LDF Modes: Finder ~ deep+, Compatibility ~ soft
Found 31 compatible libraries
Scanning dependencies...
Dependency Graph
|-- <Timer-CAM> 0.0.1
|-- <WiFi> 1.0
|-- <ArduinoJson> 6.16.1
|-- <MQTT> 2.4.7
|-- <FS> 1.0
|-- <SPIFFS> 1.0
|   |-- <FS> 1.0
