This webapp from the web/home-next directory is based on next.js, Material UI and MQTT.js.

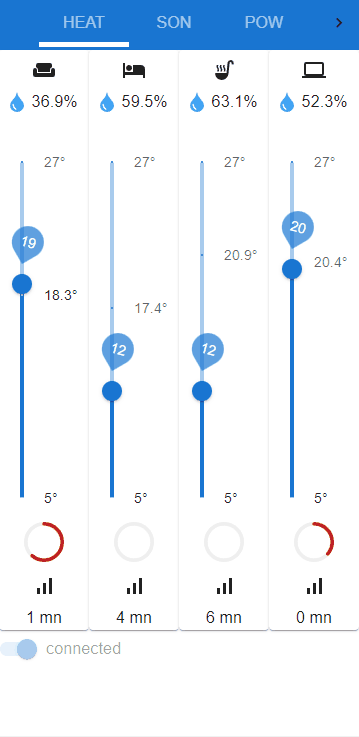

  • The Heat panel controls the temperature with Eurotronics Zigbee valves running on Zigbee2mqtt. The room humidity is also shown from nRF custom sensors
  • The sound panel controls sonos system to switch it on and off through Tuya smart sockets, and it controls the volume through node-sonos-http-api. The sockets can also be controlled with an Aqara button.
  • The power panel controls Tuya smart sockets and displays the power consumption. On and Off images are updated depending on the state. The PC socket is switched on with an Aqara button and switched off with an auto power off pc_control script.
  • The Ambient Panel is a Grafana dashboard that shows the last day charts of humidity, temperature and light from the nRF custom sensors

  • The Energy panels is also a Grafana dashboard that shows cumulated energy for the last 24h or last 30d, combining energy measures from Shelly plug s wifi and Tuya zigbee sockets.

×
