Devices Overview

Below are examples of used devices in this project
Zigbee Devices
×

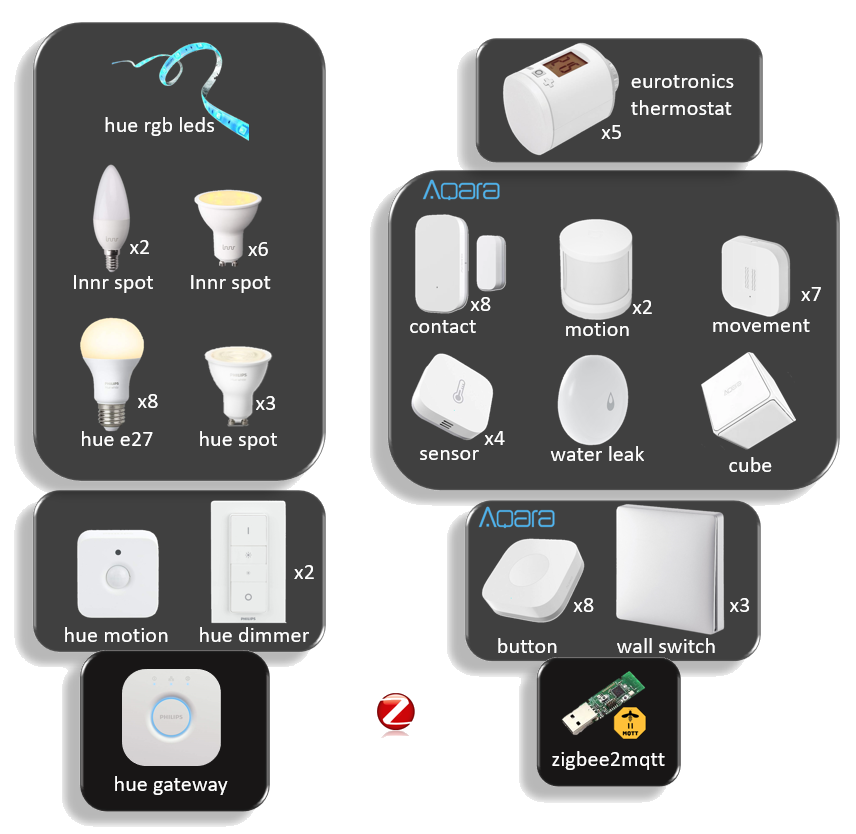

As in the above figure, I kept all the light with the hue gateway for a reliable function, and opted for zigbee2mqtt for all other non lighting devices.
For a detailed list of used devices and their documentation see the devices list section

Frameworks

Philips Hue

✅ Philips Hue have an open API that can run in a local network, therefore allowing third party apps integration. This API has been tested in this project, it is of professional grade and reliable.
meethue developers
  • Hue Light Control from Aquara wall switches and buttons
  • The Smart Home3D webapp is using the hue API, and advanced light groups dimming with 3d sliders

Zigbee2mqtt

✅ The most popular framework that enables DIY fans to use even non-standard devices on standard gateways
❌ as this project is diconnected from the devices vendors integration testing, some instabilities and interoperabilites issues might be expected for some devices
zigbee2mqtt.io

Useful commands

> cd /opt/zigbee2mqtt
> ./update
> sudo systemctl restart zigbee2mqtt
> nano /opt/zigbee2mqtt/data/configuration.yaml
> nano /opt/zigbee2mqtt/data/database.db
> pub 'lzig/bridge/config/permit_join' -m 'true'
> pub 'lzig/bridge/config/force_remove' -m '0x00158d0012341234'
Copied!

Links

  • github repo
  • install
  • supported devices
  • firmware
  • mqtt messages

Standard

Specification

  • ZLL : Zigbee Light Link, Easy - No Coordinator 13001r00ZB_MWG-ZigBee_Light_Link_Standard.pdf
  • ZHA : Zigbee Home Automation 075367r03ZB_AFG-Home_Automation_Profile_for_Public_Download.pdf, see also Silicon Labs ZLL Fundamentals UG103.9
  • ZGP : Zigbee Green Power
  • HAP : Homekit Accessory Protocol
  • CLIP : Connected Light Internet Protocol
  • ZHA + ZLL + … webcom_zigbee_rg2017.pdf
  • Security us-15-Zillner-ZigBee-Exploited-The-Good-The-Bad-And-The-Ugly-wp.pdf
  • Zigbee Pro 2015 : docs-05-3474-21-0csg-zigbee-specification.pdf
  • ZCL : Zigbee Cluster Library 07-5123-06-zigbee-cluster-library-specification.pdf
  • Zigbee 3 : Zigbee 3.0 Base Device Behavior Specification docs-13-0402-13-00zi-Base-Device-Behavior-Specification-2.pdf
For the latest version of the standard documents please refer to the Zigbee alliance official website
zigbeealliance.org

Layers Architecture

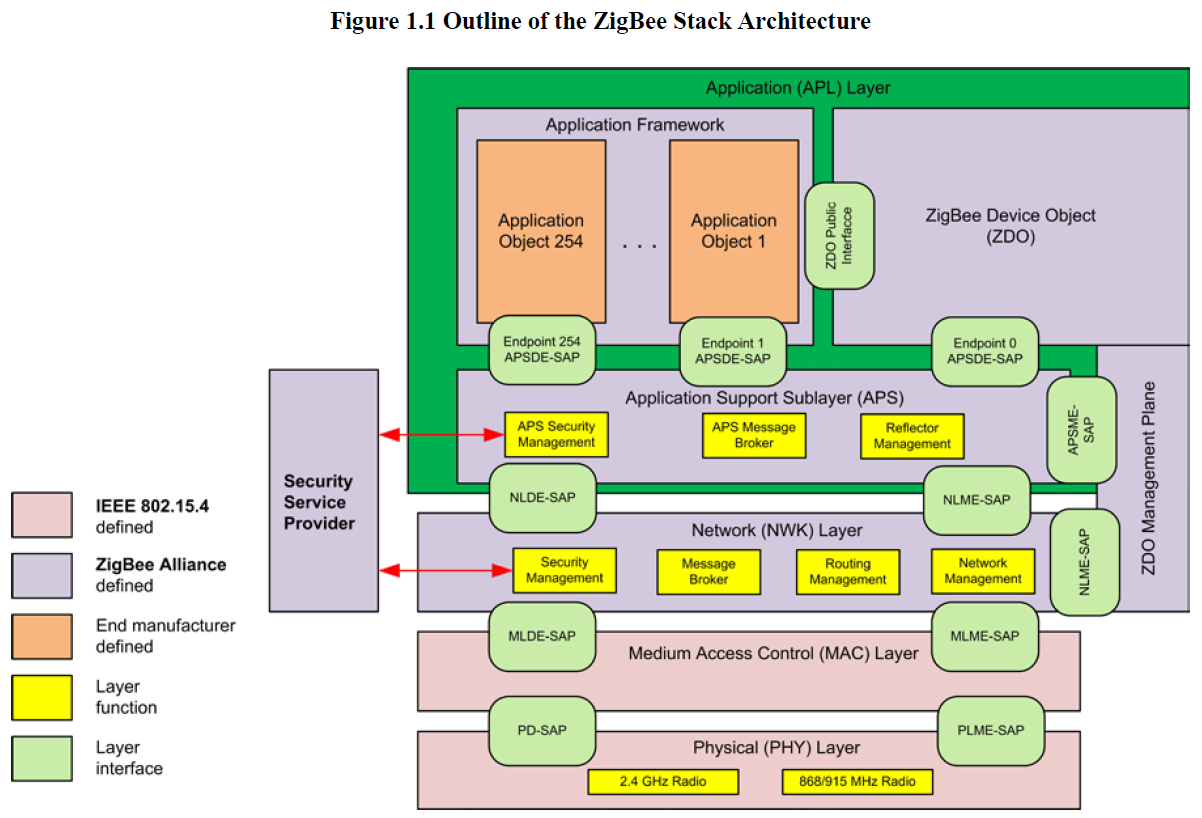

In this Figure from the Zigbee Pro 2015 Page2, We see the multiple layers, mainly the physical, the MAC, the network and the application. It is therefore not appropriate to compare Zigbee with other networking protocols such as wifi given that the zigbee includes standardisation of the Application layer (APL)
Zigbee Stack Architecture
×

Firmware

ZBOSS

ZBOSS 3.0 and 2.1 are independent, portable, high-performance Zigbee® software protocol stacks
dsr-zboss.com

Nordic integration

The ZBOSS is used in Nordic devices either as lower stack with the application running on the same SoC or used as a Network Coprocessor
Nordic Zigbee design

TI Z-Stack

This is the Stack used by Zigbee2mqtt
TI Z-Stack
reference documents to be accessed through TI website
  • ressource guide
  • Z-Stack ZNP (ZNP Protocol)
  • Z-Stack Monitor and Test API

Wireshark sniffing

  • Observing the network is mandatory for experiemnting with zigbee devices, as it's sometimes not possible to identify the source of the issue (end device or coordinator) without looking at the air messages.
  • Note that an RF sniffer for 802.15.4 is enough to sniff zigbee as the zigbee higher layer protocol dissection is supported by wireshark
  • nRF Sniffer for 802.15.4
  • TI packet sniffer

Filters

ScopeExpression

Coloring rules

MAC, wpan.src64 == 00:15:8d:00:00:11:22:33

Devices List

TI MCUs

ChipFeature
  • instructive reference : TI wireless connectivity

TI Dongles

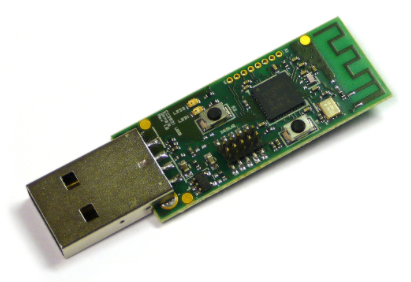

  • CC2531EMK
  • Zigbee2mqtt guide

TI based dongles

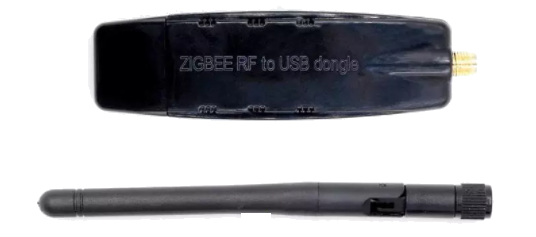

GB2530

This dongle has an additional amplifier chip.
  • GBAN GB2530-S = CC2530 + RFX2401
  • GBAN GB2530-H = CC2530 + CC2591
  • Aliexpress
required config for zigbee2mqtt
advanced:
  rtscts: false
Copied!

CC2652 based

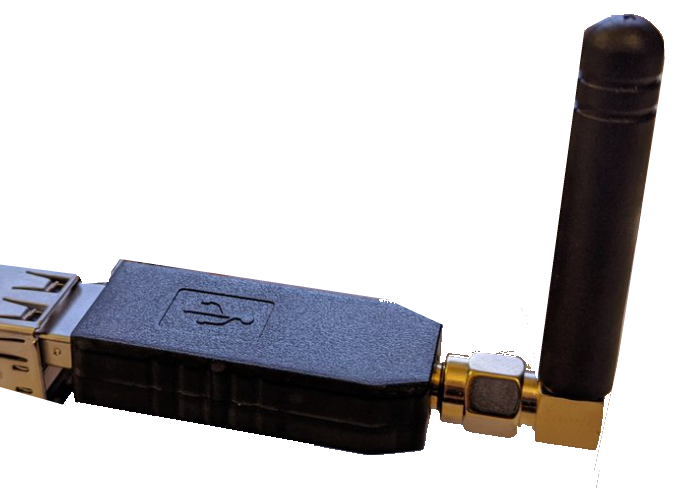

This dongle is based on the 2nd generation chips that are more powerful (including ARM-M4F and ARM-M0) also has more memory to handle more zigbee paired devices.
Product page
  • Zigbee2mqtt guide

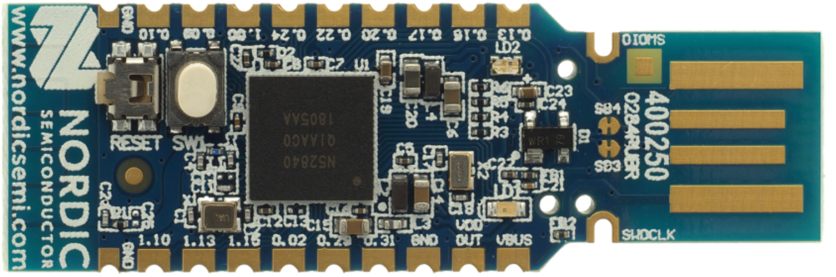

Nordik Dongle dev kit

Unfortunately not supported by Zigbee2mqtt, but there's chance in case they move to a ZBOSS common stack. Nevertheless, it's possible to use it as a sniffer give the zigbee being the stame standard in the air physical layer.
Product page
  • cheap, around 9€ on Mouser
  • See also its usage in the custom mesh framework.

Eurotronics Heating

Product page
  • User Manual including details about the used clusters and attributes
usefull commands
> pub 'lzig/office heat/set' -m '{"current_heating_setpoint": 9}'
> pub 'zig/living heat/set' -m '{"current_system_mode": 16}'
> pub 'zig/living heat/set' -m '{"current_system_mode": 32}'
Copied!
Provided measures
  • current_heating_setpoint
  • occupied_heating_setpoint
  • unoccupied_heating_setpoint
  • eurotronic_system_mode
  • pi_heating_demand
  • eurotronic_error_status
  • battery
  • linkquality
  • local_temperature
Used in applications
  • Home heating app
  • Heat cut rule
❌ Unresolved Problem : it happened few times in 2 years that a device starts spontaneously heating with full power after a sort of connection loss or self reset. Not funny when this happens in summer, especially when someone is not at home. No answer from the support.
